--- 2017/12/16 1:45 ---
Again... Two Three new Aristocrat MkV titles preserved. Also got a bunch of dumps that match what we already have in MAME.
- King Galah (AHG1625, US).
- Mountain Money (BHG1464, US).
- Chicken (RHG0730-99, US).
snaps...

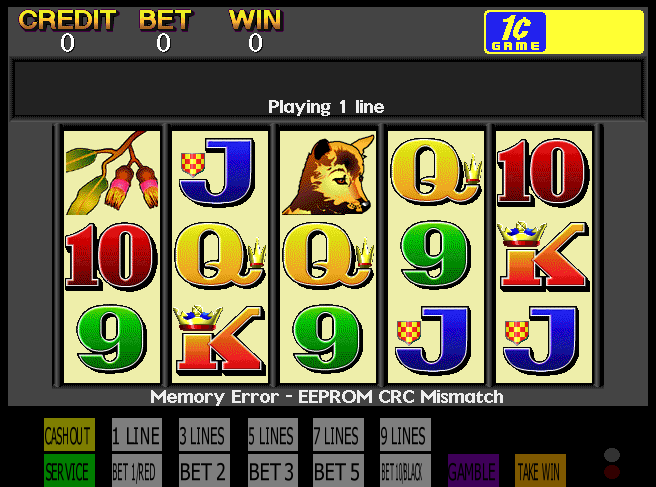

King Galah (AHG1625, US).

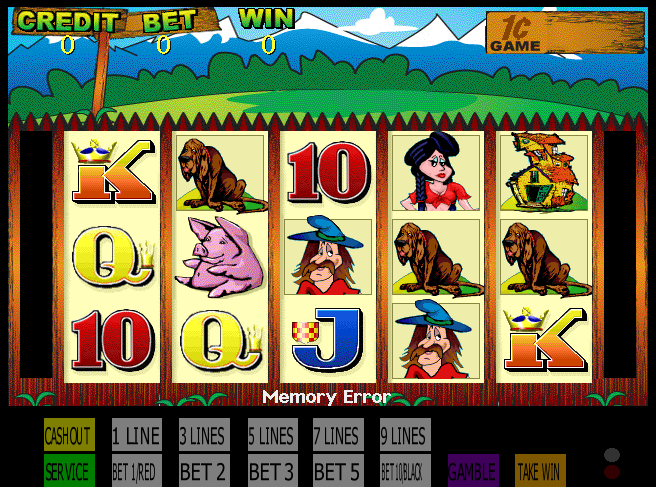

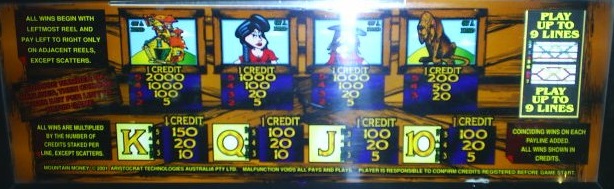

Mountain Money (BHG1464, US).

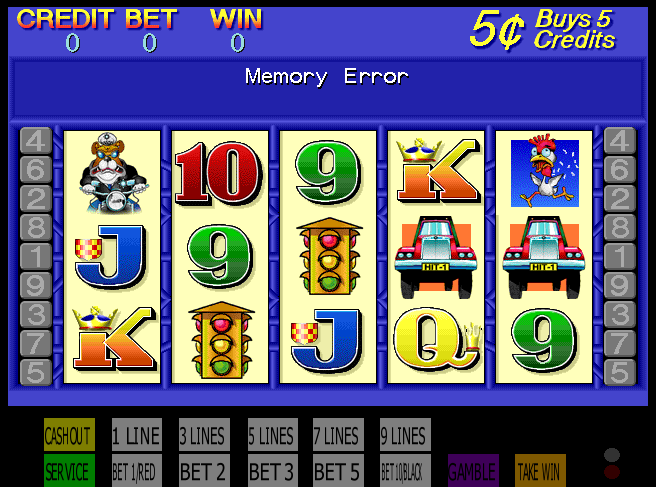

Chicken (RHG0730-99, US).
--- 2017/12/14 3:20 ---
Two new Aristocrat MkV titles preserved...
- Chicken (01J01886, NSW/ACT).
- Wild Africa (AHG1535, US).
snaps...

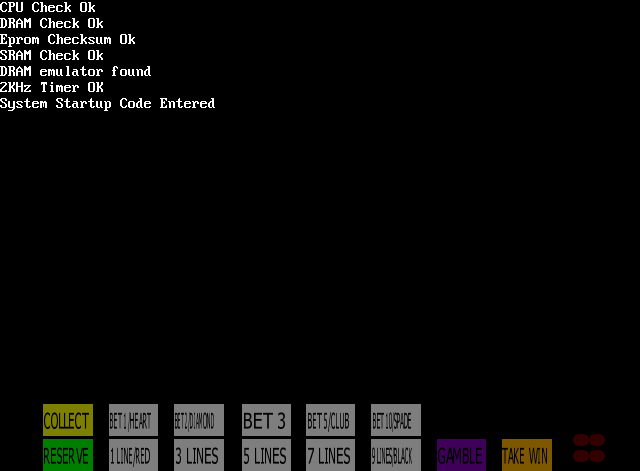

Chicken (01J01886, NSW/ACT). Boots, but something fails and is doing a loop. These devices were dumped from a blister instead of a PCB.

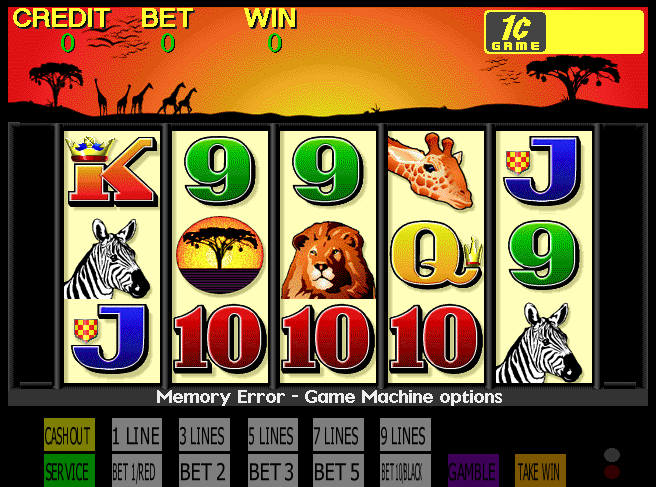

Wild Africa (AHG1535, US).
--- 2017/12/13 13:10 ---
Another trip... Another country. Three new Aristocrat MkV titles preserved. :)
- Honkey Tonk - Cash Express (BHG1455, US).
- Keep Your Hat On (BHG1204, US).
- Inca Sun (01J01946, Venezuela).
snaps...

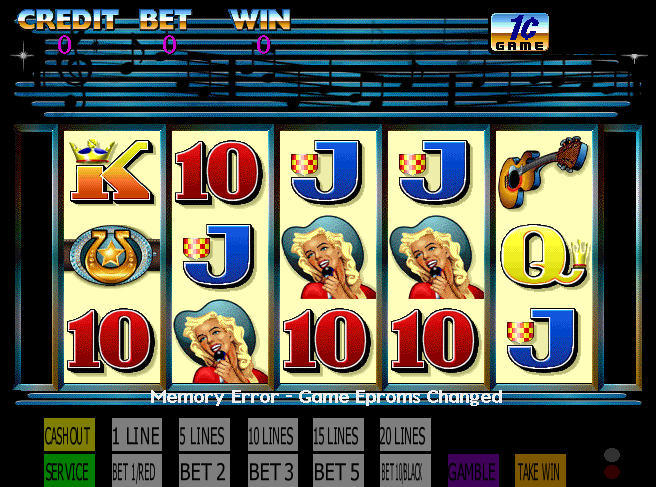

Honkey Tonk - Cash Express (BHG1455, US).

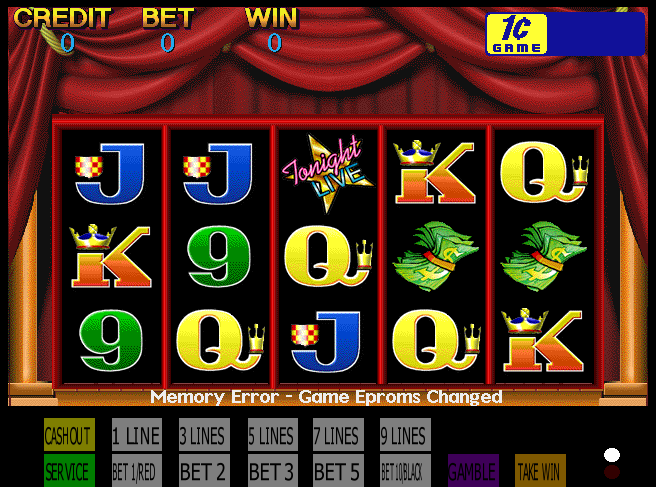

Keep Your Hat On (BHG1204, US).

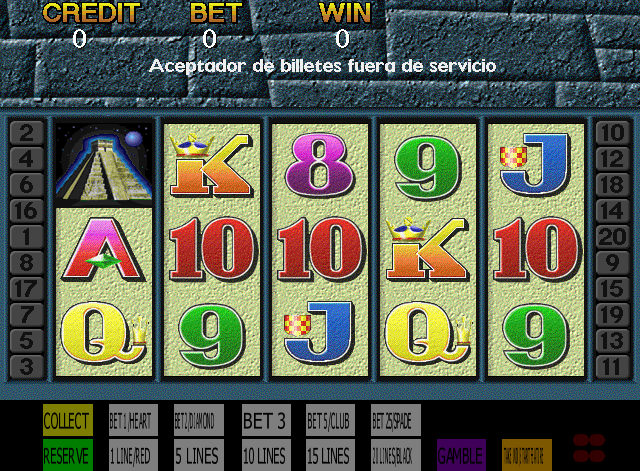

Inca Sun (01J01946, Venezuela).
--- 2017/12/05 20:10 ---

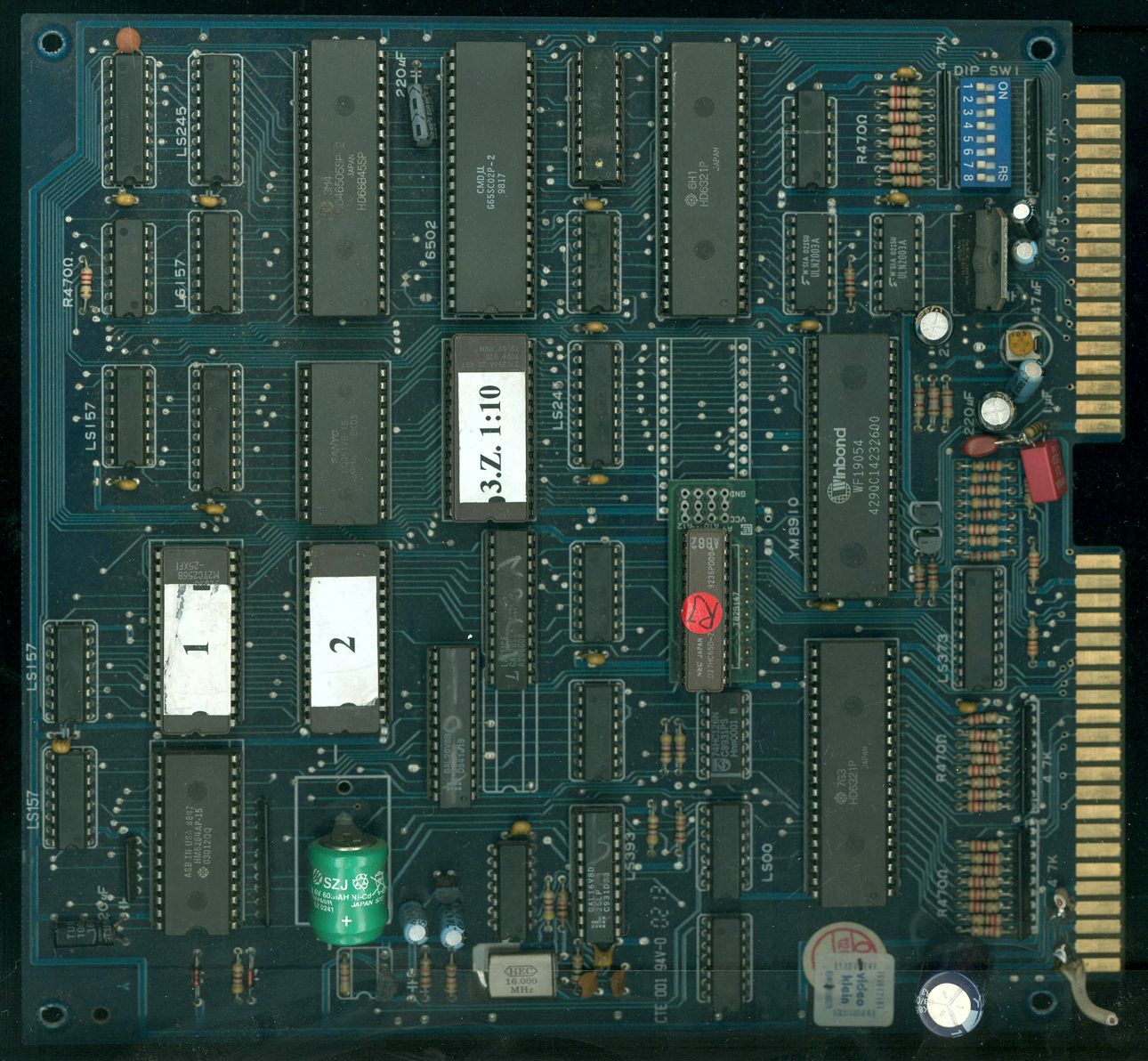

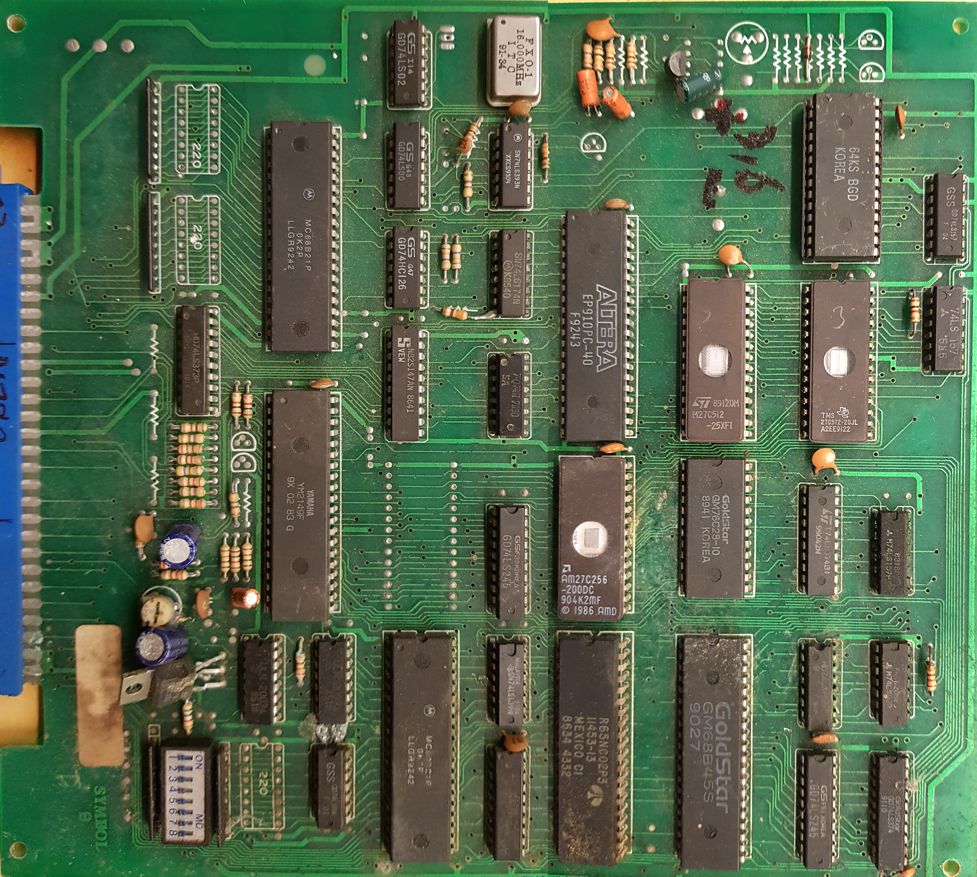

Added a new Jolly Card dump from Team Europe and Rock Shebbich. The game is an italian bootleg and the strange thing is that doesn't need NVRAM initialization to start to work. Here is the PCB:

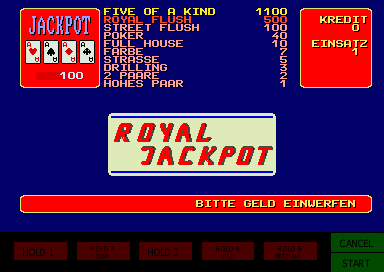

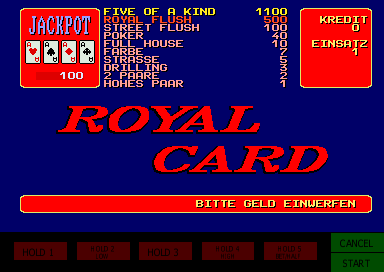

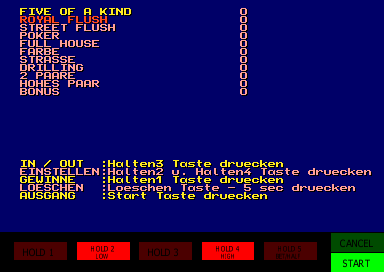

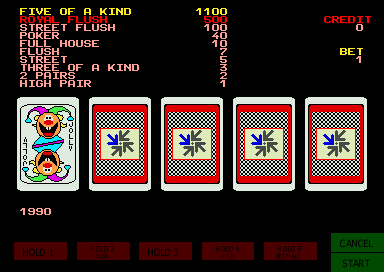

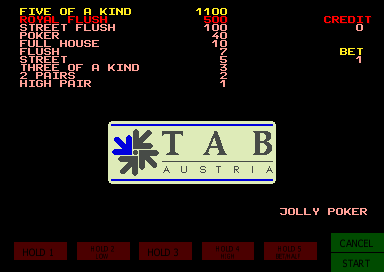

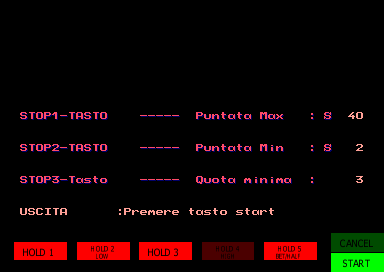

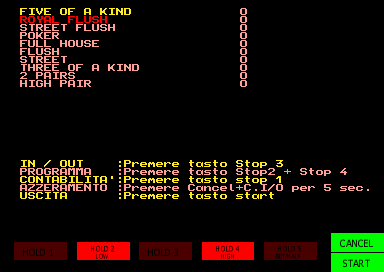

And some snaps of the game running:
And also dumped / added another Aristocrat MkV game: Bumble Bugs (CHG0479-99, US). :-)
**** EDIT ****

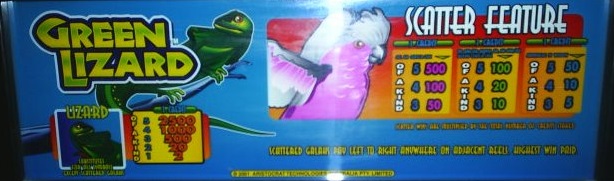

Whoooohoooo!... And another ultra rare find: Green Lizard (AHG1623, US). :-)
--- 2017/12/03 16:10 ---
We found another three Aristocrat MkV titles over there. :)
- Boot Scootin' (AHG1547, US).
- Penguin Pays (OHG0417-02, US).
- Penguin Pays (OHG0417-03, US).
snaps...

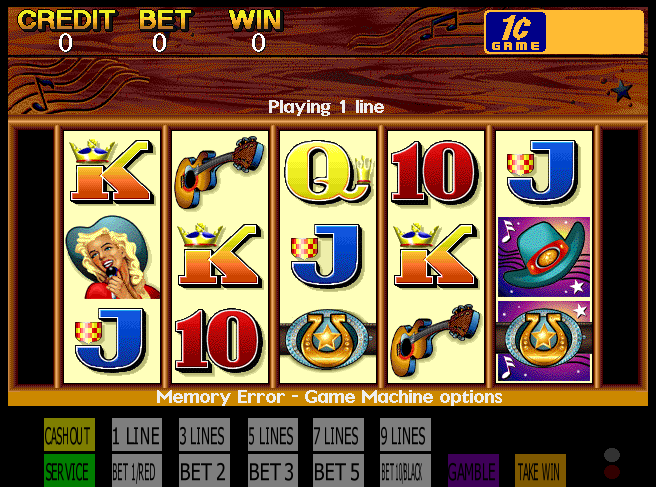

Boot Scootin' (AHG1547, US). This one should be parent since it's Export B, dated 2001.

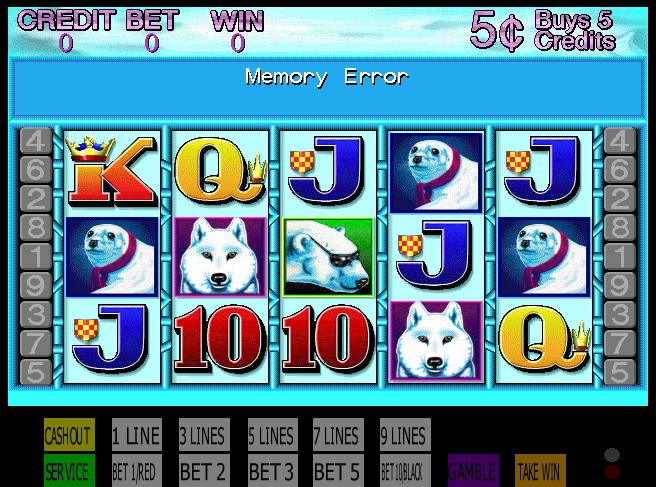

Penguin Pays (OHG0417-02, US) and Penguin Pays (OHG0417-03, US).
--- 2017/12/02 18:20 ---
Another big effort, another rush... We got another two corrupted/bitrotten Aristocrat MkV titles redumped. :)
- Inca Sun (DHG1577, US).
- Loco Loot (AHG1513, US).
- Unicorn Dreaming (BHG1584, US).
snaps...

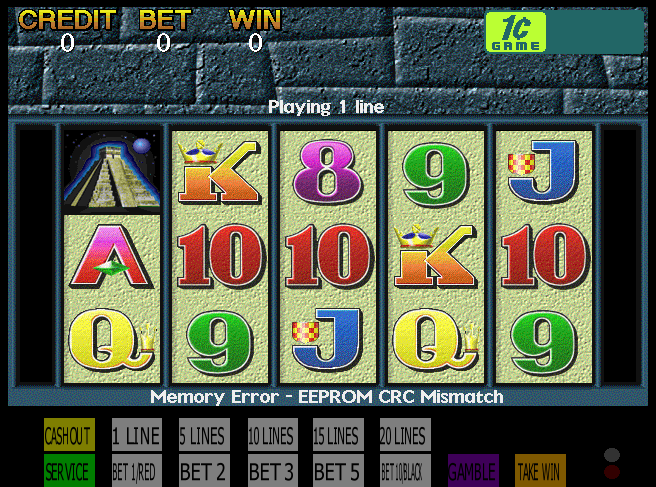

Inca Sun (DHG1577, US).

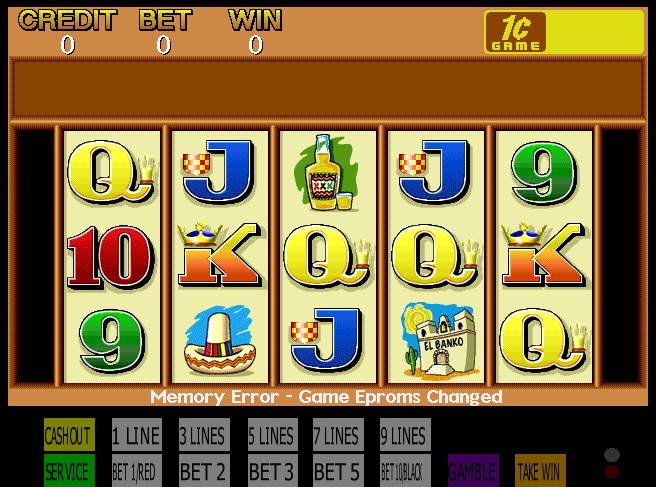

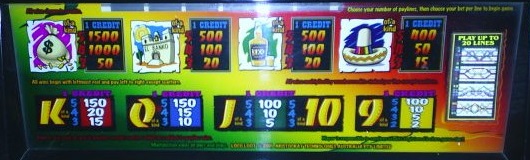

Loco Loot (AHG1513, US).

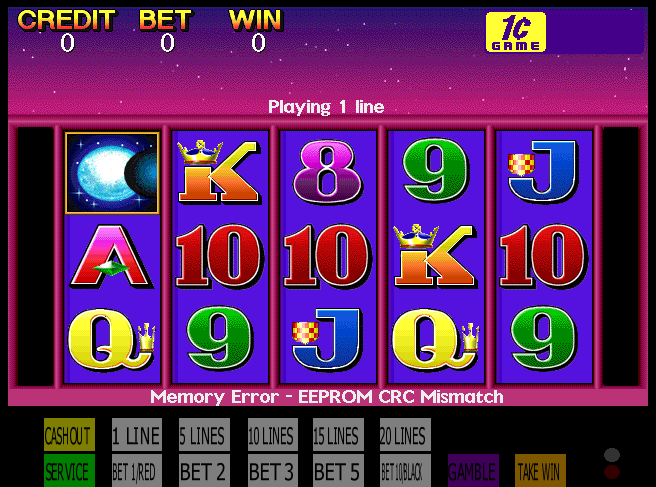

Unicorn Dreaming (BHG1584, US).
--- 2017/11/24 04:23 ---
After a big effort, we got most of the corrupted/bitrotten Aristocrat MkV titles redumped.
These games are NOT currently working, but they boot, have sound, and show graphics. Here the list and some snaps of the redumped sets:
- Adonis (BHG1508, US).
- Boot Scootin' (GHG1012-02, US).
- Bumble Bugs (CHG0479-03, US).
- Cash Chameleon (DHG4078-99, US).
- Enchanted Forest (JHG0415-03, US).
- The Gambler (EHG0916-02, US).
- Golden Pyramids (AHG1206-99, US).
- Margarita Magic (EHG1559, US, set 1).
- Magic Garden (AHG1211-99, US).
- Party Gras (BHG1284, US).
- Sweethearts II (PHG0742-02, US).
- Tropical Delight (PHG0625-02, US).
- Sweet Liberty Deluxe (AHG1575, US).
snaps...

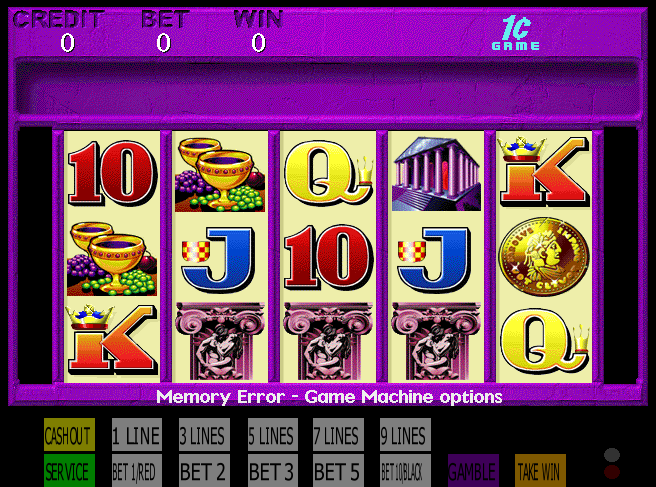

Adonis (BHG1508, US).

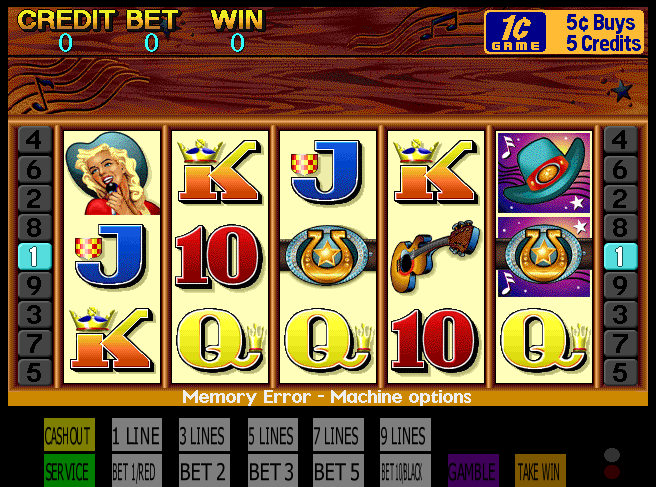

Boot Scootin' (GHG1012-02, US).

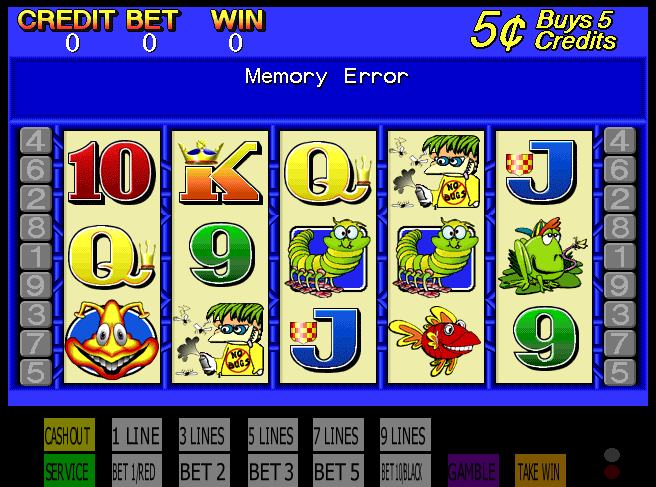

Bumble Bugs (CHG0479-03, US).
Cash Chameleon (DHG4078-99, US).

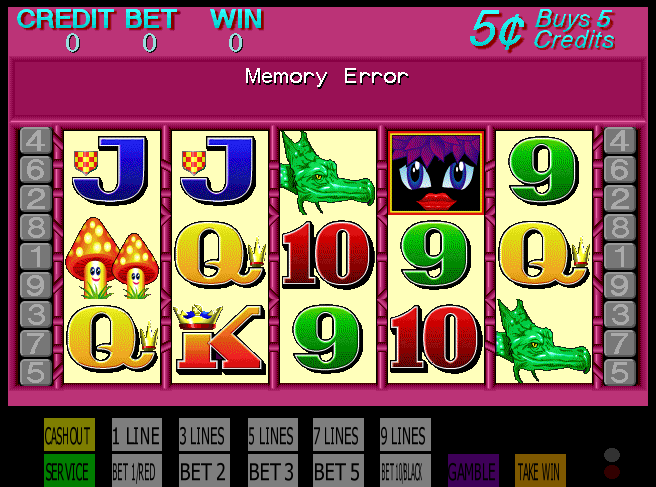

Enchanted Forest (JHG0415-03, US).
The Gambler (EHG0916-02, US).

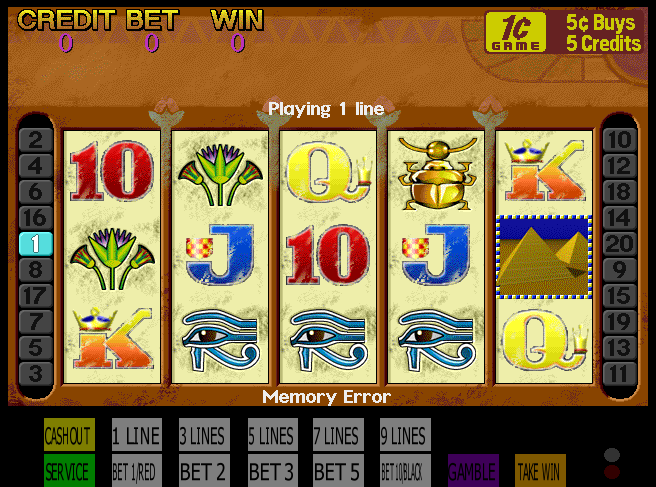

Golden Pyramids (AHG1206-99, US).

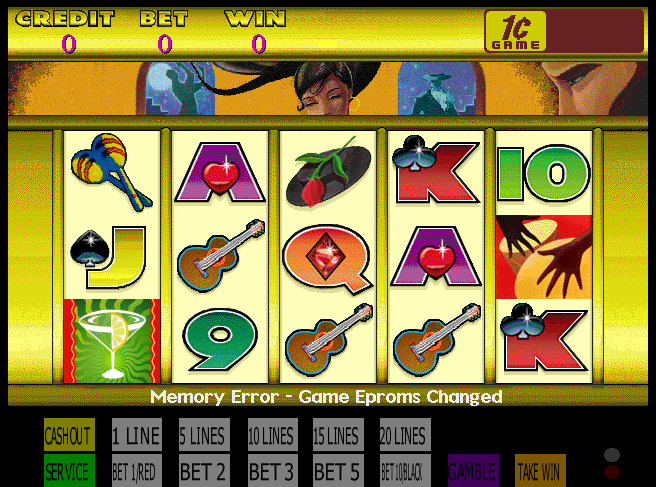

Margarita Magic (EHG1559, US, set 1).
Magic Garden (AHG1211-99, US). Alternate title for Enchanted Forest?...

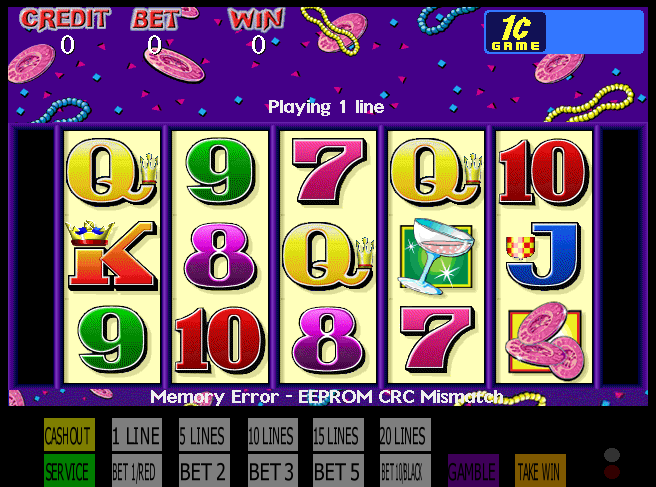

Party Gras (BHG1284, US).

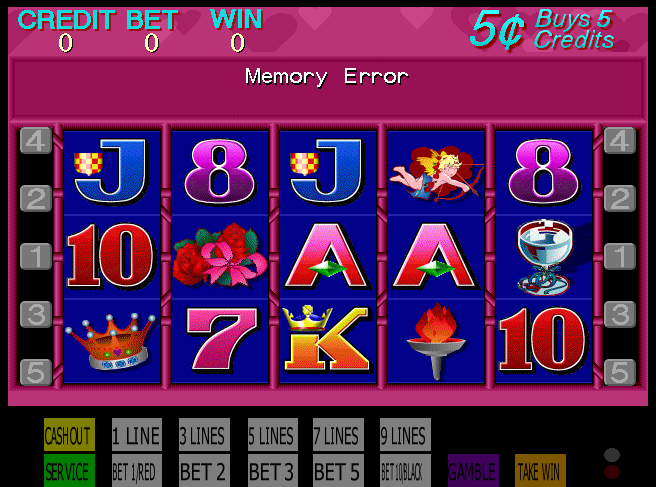

Sweethearts II (PHG0742-02, US).

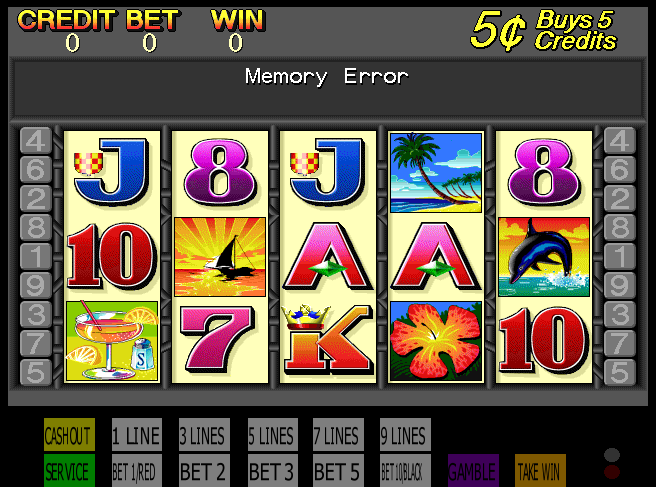

Tropical Delight (PHG0625-02, US).

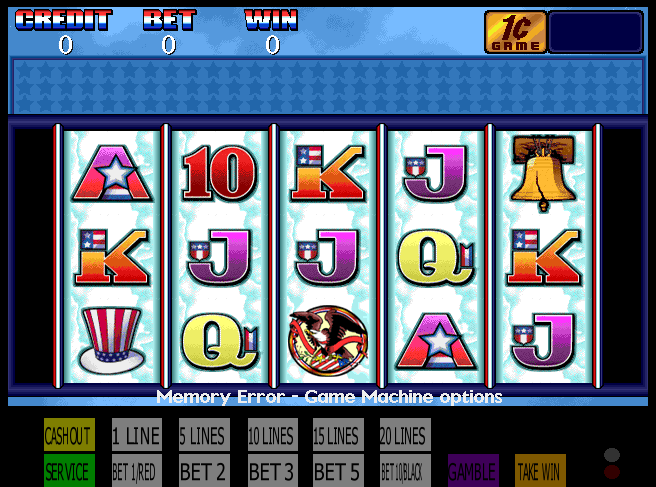

And finally the unexpected one... Sweet Liberty Deluxe (AHG1575, US). Operators said that all these machines were destroyed, so seems to be a rare find.
**** EDIT ****

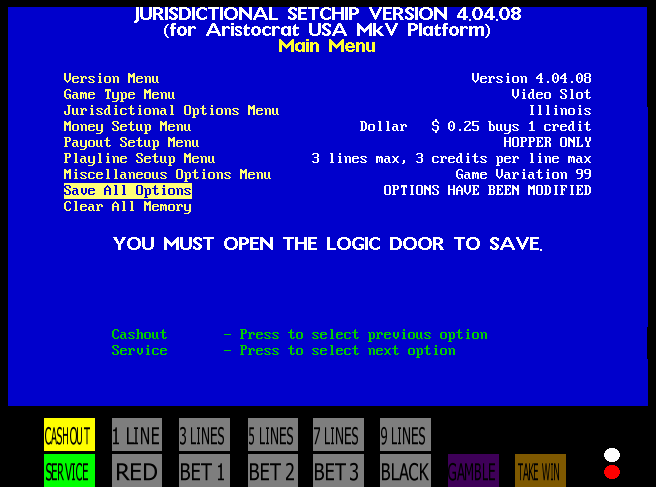

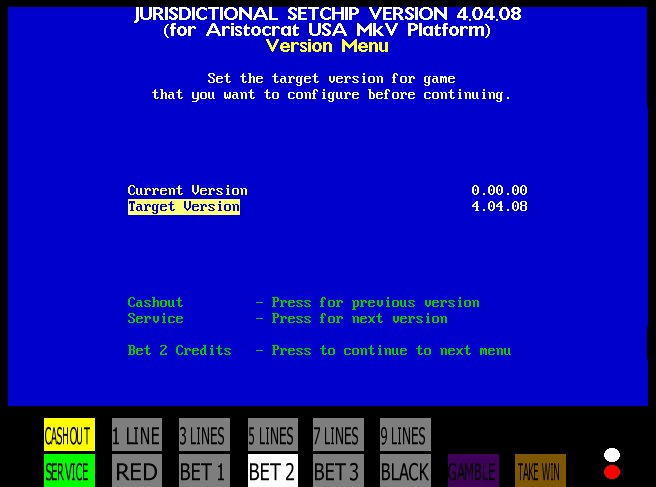

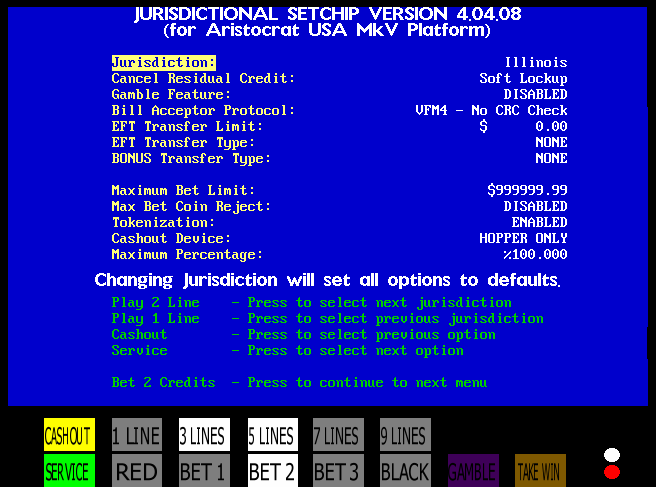

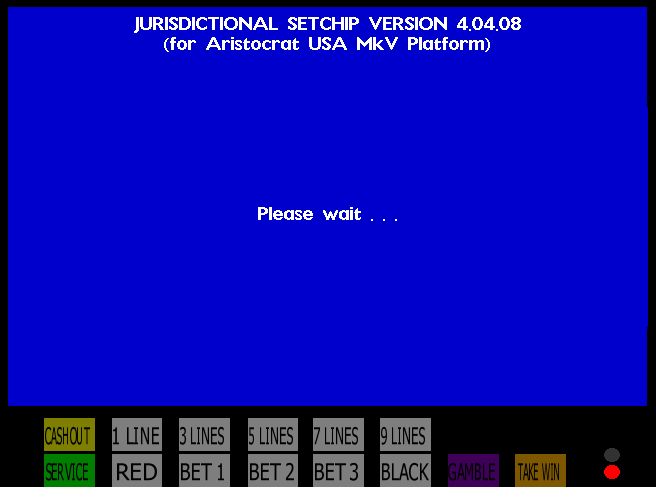

Also added the BIOS / USA Set Chip v4.04.08. Here some snaps...
--- 2017/09/03 02:25 ---
A new board acquired by Team Europe.
This is a modified Royal Card that allow a third deal (still can't find how :-P ), but looks interesting. The game has encrypted graphics like the blue TAB PCB. The encryption scheme is similar:
The board performs by byte nibble a boolean XOR against the same value shifted to the right, then shift the result to the left carring the less significant bit and losing the most significant one.
Encrypted value: 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111
------------------------------------------------------------------------------------------------
Decrypted value: 0000 0011 0110 0101 1100 1111 1010 1001 1000 1011 1110 1101 0100 0111 0010 0001
So we performed the following calc:
decrypted_byte = ((X ^ (X >> 1)) << 1 ) + (((Y ^ (Y >> 1)) >> 3) & 0x0f)
Being X & Y the encrypted nibbles...
Here are some snaps...

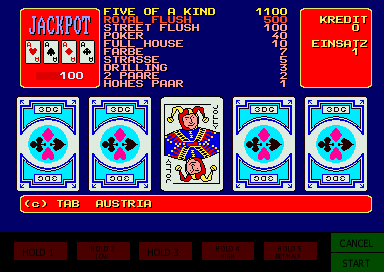

Now decrypted... :)
Will see if we can get the way to get the third deal working...
--- 2017/08/27 05:10 ---
I'm working on a new dump from caius, The game is a not identified poker type gambling game running in a Z80 + AY-3-8910 hardware. The PCB is not working but caius told us that will try to resurrect it (we need it to check colors, tile banking, etc...)
Some snaps of the game working:
With the whole input system working...
With a hack from AJR to get the correct graphics (we can't find a selector for the tile bankswitching) :(
We need to find the tile bankswitching selector, otherwise the bookkeeping will looks broken. Anyway... The game is playable now.
--- 2017/07/28 04:40 ---

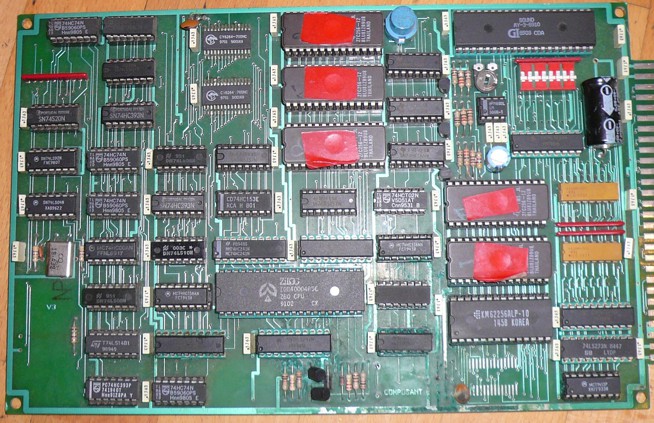

I'm working on a new driver for this rare Z80 + AY-8910 based PCB, dumped by Arzeno Fabrice. The game is unknown and need to be identified. The PCB is not working, but following the marks, the only thing we have is that seems it was manufactured in France.

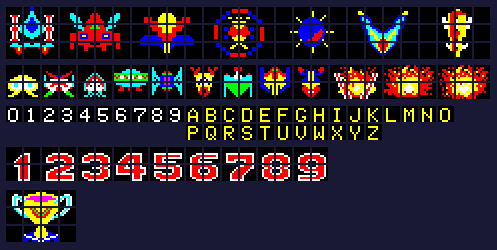

Data and addressing lines are encrypted/scrambled. However, I decoded the graphics. Here you can see the tiles manually arranged.
If someone can help to identify this game, I'll appreciate some feedback in the MameWorld forums, or just drop me a PM or mail through "contact" here.
********** EDIT **********
Well... Haze pointed me that this hardware belongs to '4 En Raya' driver... Now it's working in the correct driver. The game is in fact a 'Stealth' game. A sort of a gambling game hidden into a 'Space Invader' front game, to avoid the anti-gambling laws...
Here some snaps...
********** EDIT #2 **********
Now a second set appeared!... This one has worse addressing things, but now it's working too!. This set has graphics for 'Space Invaders' and also for the 'Pac-Man' gambling game that runs in similar hardware. I think it's just a leftover.
--- 2017/07/25 10:00 ---
Some years ago, I wrote a driver for Blitz's Mega Double Poker. The hardware was close to Bonanza's Golden Poker Double-Up, but using a protected 68705 MCU. Now, thanks to Caps0ff hard work decapping the device, we have the extracted program.
AJR was kind enough to hook the MCU, and finally the driver was merged with the Golden Poker Double-Up one. The game is finally working!!... Here some snaps.
Also Arcade Vintage dumped a clone of Golden Poker Double-Up from a bootleg board, that looks similar to Potten's poker, but the hardware has
the same full addressing mode seen in the Bonanza's game...
--- 2016/11/14 15:05 ---

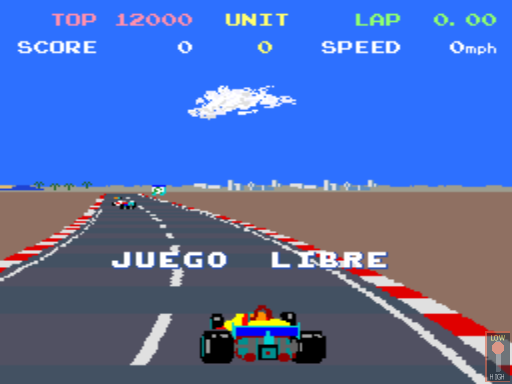

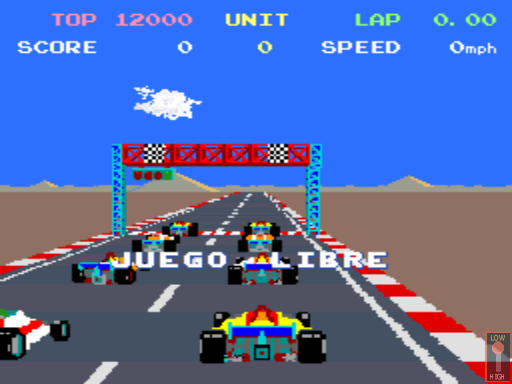

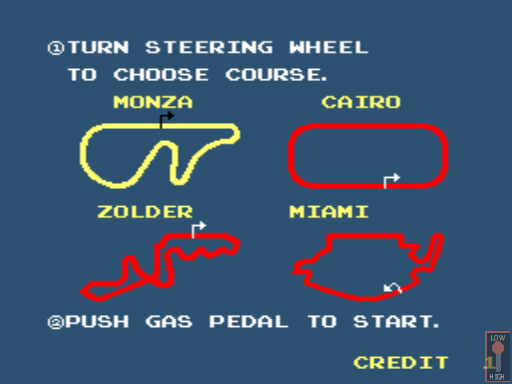

Thanks to Arcade Hacker and Rockman, we have Gran Premio F1 (spanish bootleg of Pole Position II) dumped. :-)
This bootleg has a TMS5220 for spanish voices instead of the Namco 52xx. For now the spanish voices aren't working due to the lack of proper implementation.

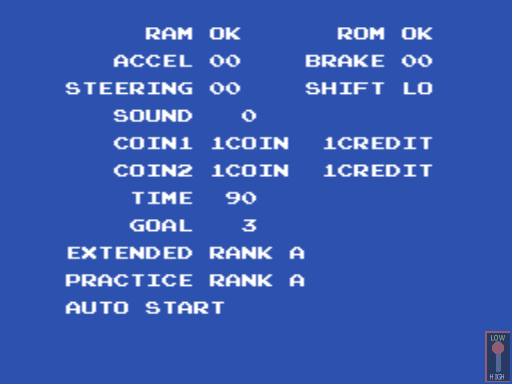

Here some snaps.
